LED Blocks

LED Blocks

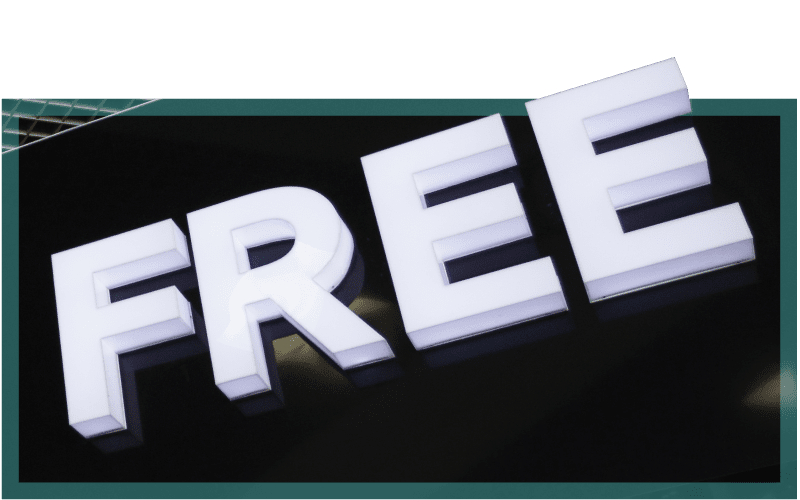

Astariglas LED BLOCKS is a dazzling alternative to traditionally constructed letters as they allow sign makers to route out channels and embed LED lights either inside or on a mounting plate . The results are stylish , one - piece letters with optimized brightness and even light diffusion to maximize the environmental and economic benefits of energy - saving LED technology .

ASTARIGLAS IED BLOCKS is perfect for block shape designs illuminated by homogeneous diffusion of LED backlighting . The WR 438 LD of LED Blocks are available in 25 , 30 , and 35 mm thickness .

Benefit of ASTARIGLAS LED BLOCKS

  • Easier fabrication and installation ( leads to lower installation cost ) vs conventional method
  • Brighter illumination , even from the sides Highly stylish results
  • Low maintenance
  • Broad processing latitude : with a wide range of options ( shallow and deep routing )
  • Lower energy consumption due to lower number of LED lamps to achieve the same brightness

Applications

ASTARIGLAS® LED BLOCKS can be incorporated into commercial , industrial , residential and professional applications , both for indoor and outdoor installations . The LED light source can be embedded in routed cavities of thick blocks to make illuminated sign letters . For the best result of light diffusion , the remaining walls after the routing should be at least 12 mm thick . ASTARIGLAS LED BLOCKS is particularly brilliant for :

  • Channel letters
  • Signage
  • Furniture
  • Displays
  • Architectural features

How to use LED Blocks

  • Backlighting with a thick sheet .
  • This concept is using LED Light at the back of the Blocks and delivering light to the front
  • This type of LED Blocks backlighting is the most commonly used
  • Direct / indirect lighting with routing
  • Direct Backlighting LED Mounted to the backing tray
  • Another way to route Astariglas LED Blocks for direct and indirect lighting is by creating a deeper gutter in the edge of the cavities
  • Direct lighting usually results in brighter signage while indirect lighting reflected onto mirror have better light dispersion but lower light intensity .
  • Lighting with embedded flexible LED Strips
  • This technique involves grooving Astariglas LED Blocks , where the gutter is just wide enough to slip in some flexible LED strips . Fabricators can apply more than one gutter depending on the width of the letter stroke .
  • The LED lights can be positioned facing inside out , or outside in or both ways
